GA - Application

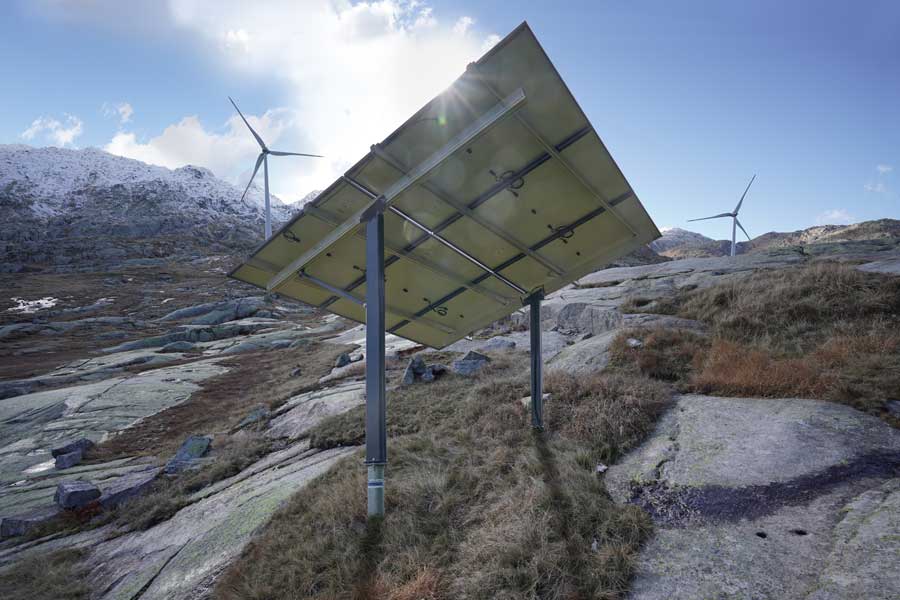

Freestanding PV systems can be implemented with our DICONAL® GA system.
Requirement: The subsurface must be suitable for anchoring with just two supports. Mounting on ground screws is only possible where the required depth can be achieved.
Building permits
Note regarding building permits for garden PV systems: For independent PV systems, operators must apply for a building permit depending on the size of the system. In almost all federal states, the permit requirement applies to open-space systems with a length of 9 m and a height of 3 m or more. A DICONAL® garden system with, for example, 14 standard modules is approximately 8.2 m long and a maximum of 2.7 m high (at a 20° inclination). In any case, you should contact the responsible municipal authority in advance.
GA - Advantages

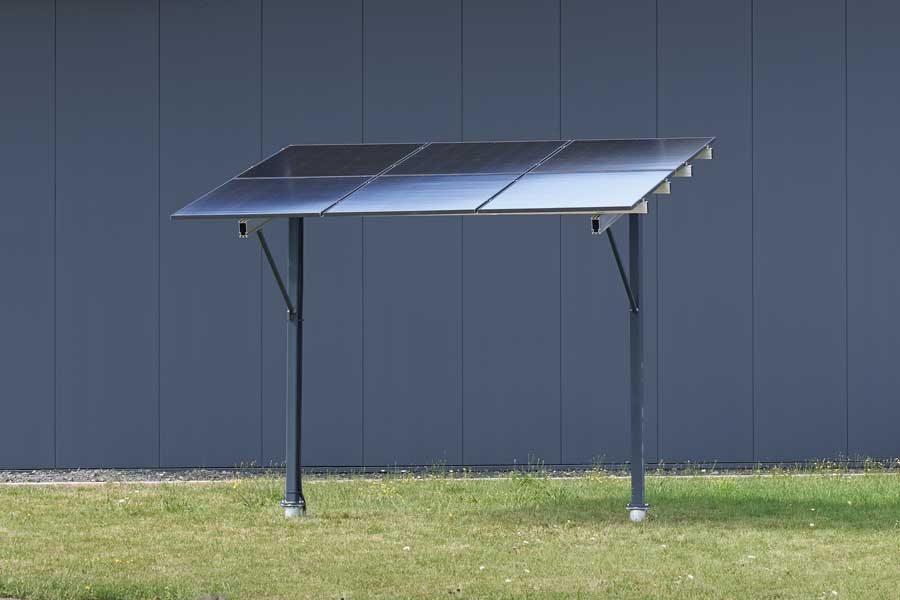

- Only 2 posts for a single bay with 6 modules
- Easily expandable - only 1 post is required for 4 additional modules
- Minimal space restrictions
- Head adjustable in 5° increments from 0° to 20°
- Inclined bracing continuously adjustable in the groove
- 0° is intended for OW elevation, similar to FD OW
- Support spacing Ⓒ variable from 2300 mm to 2700 mm, depending on the structural design (wind, snow load)
- The base is easily rotatable (photo below) with an elongated screw hole
- Can be mounted with ground screws or concrete foundations
- Wind bracing is not required in most cases - however, the ground anchoring must be clarified on site
- Attachment points for any necessary wind bracing are already integrated
- Compatible with all DICONAL® system components
- All steel components hot-dip galvanized, and powder-coatable in any RAL color upon request
DICONAL® GA - single bay
DICONAL® GA - Dimensions
Ⓐ = 3458 mm for 2 modules 1722 height
Ⓑ = 3442 mm für 3 modules 1134mm width
Ⓒ = 2300 mm bis 2700 mm / Distance between columns
Ⓗ = 2000 mm height
Ⓦ = Angular positions in 5° steps between 0° und 20°
DICONAL® GA - Expansion

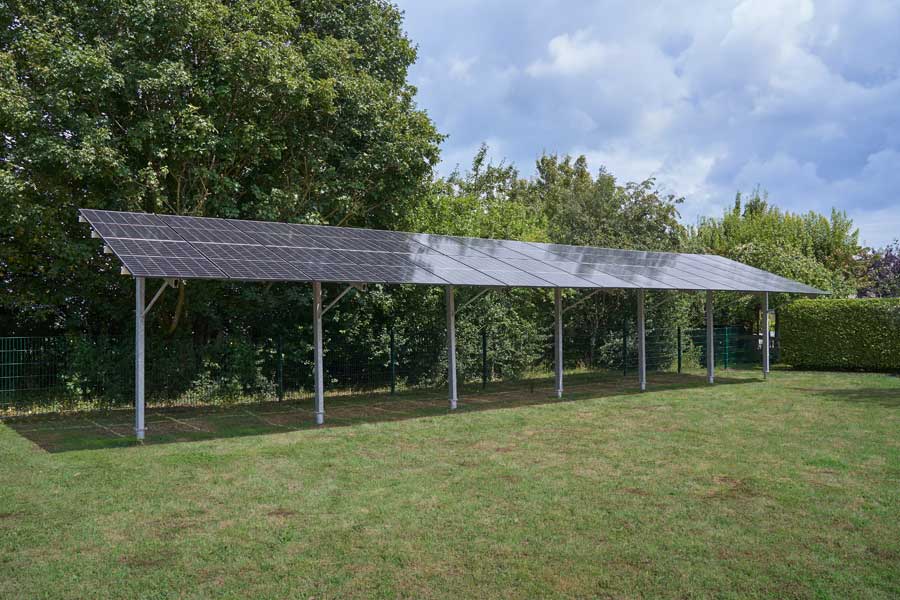

Simple, economical expandable

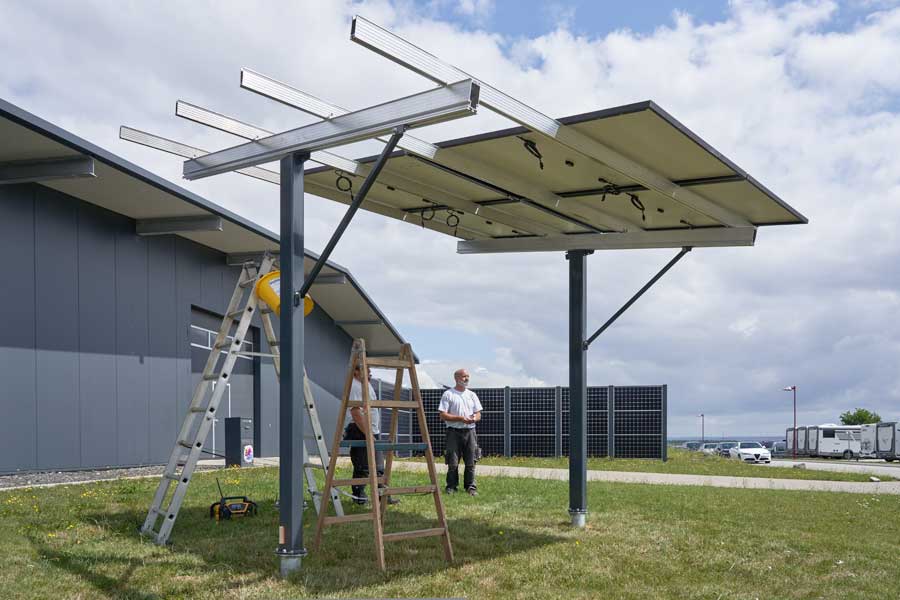

Expanding a single-panel PV system is easy and saves material. Only one additional support is required for every four additional modules. The P-80 profiles are easy to connect and form a continuous, stable profile plane.
Advantage
The spacing Ⓒ remains the same as with a single panel.
Ground Anchoring
The GA garden PV mounting DICONAL®system offers perfect connection options to concrete or ground screws. Elongated screw holes allow for easy adjustment of the base. We are a Krinner trading partner and offer a complete service, including machine rental for screw-in tools. Ask us!
Maximale Flexibilität

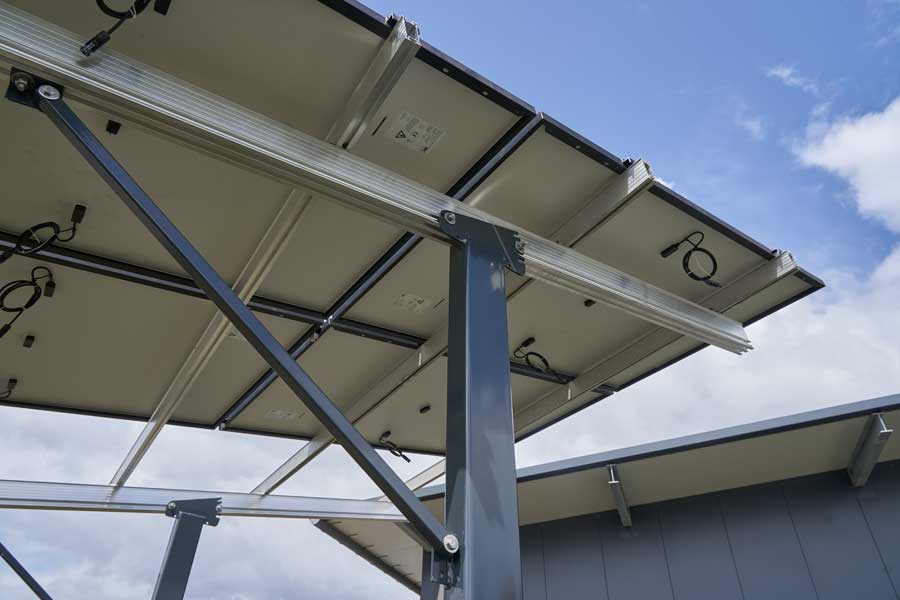

Two galvanized steel supports with an interface for P-120 system profiles sit on the ground screws. This head, adjustable in 5° increments from 0° to 20°, allows for flexible angles. The system profiles offer maximum flexibility thanks to their large spans.
Minimal material usage
The new P-120 provides a stable base for the P-80 support profiles mounted with cross connectors. These two DICONAL® profiles offer maximum stability with minimal material usage and installation effort.
System Compatible
All DICONAL® PV systems use the same mounting profiles and module clamps. For the solar installer, this means minimal inventory. For the customer, it ensures sustainable solutions that are continually developed but not replaced by other systems. Repairs or repowering of the PV garden system are quick and easy.
