P-mini Short tracks for trapezoidal sheet roofs PV-Mounting

P-mini Application
On walkable trapezoidal sheet metal roofs with a sheet metal outer skin.

Requirement - Trapezoidal sheet metal, minimum sheet thickness: 0.5 mm steel / 0.5 mm aluminum
Material P-mini: ENAW 6063 permissible tensile load of the P-mini profiles: 1,00 kN

P-mini Advantages

• Quick, easy attachment to the raised bead
• Direct installation with module clamps
• Fastening with blind rivets or thin sheet screws approved by building inspectors
• Only two components required for installation
• No need to transport long profile bars
• Independent of bead spacing
• Easy adjustment to the module dimensions
• The profile sections are pre-drilled and sealed with sealing tape.
• P-mini short rails can be used as a base for AS-100-75 elevations
• Compatible with KV-AS cross connectors

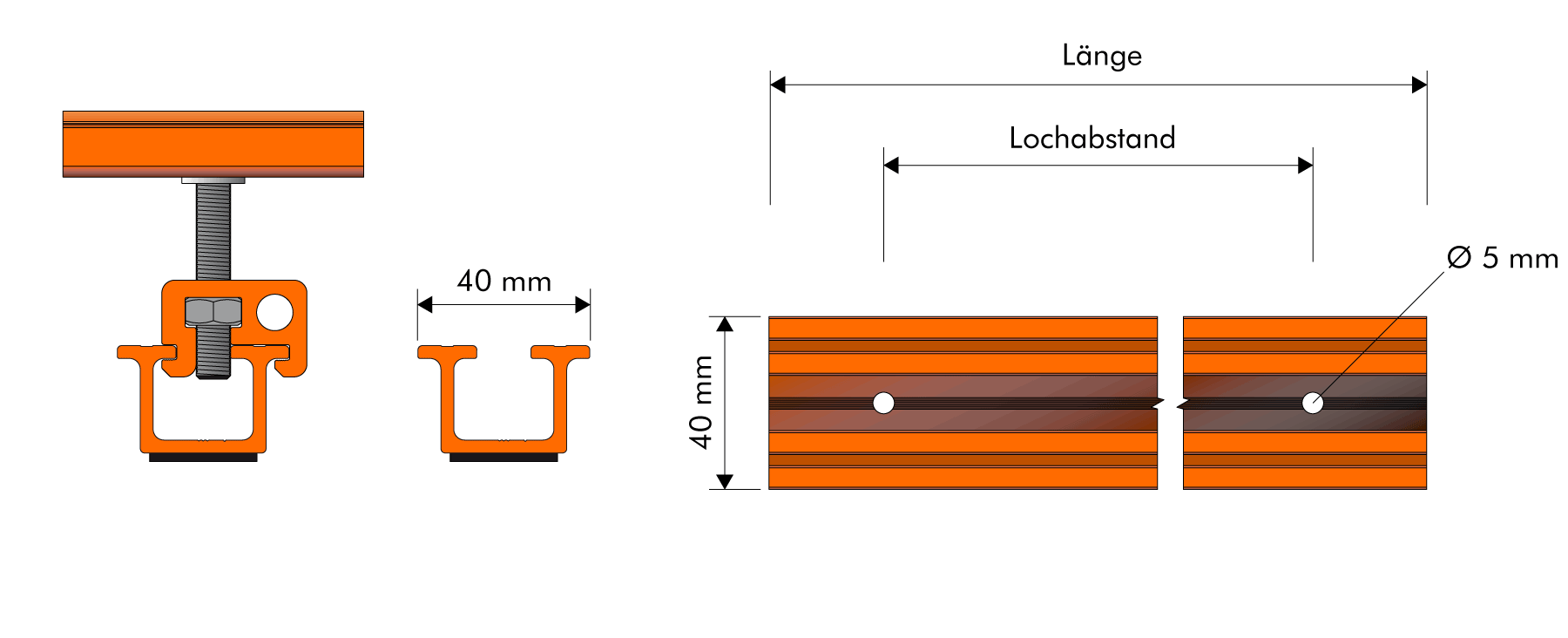

Technical Data

• Art.Nr.: P-mini-125 (Installation parallel on a high bead)
• Art.Nr.: P-mini-207 (Mounting on 2 raised beads - bead spacing 207 mm)
• Art.Nr.: P-mini-250 (Mounting on 2 raised beads - bead spacing 250 mm)
• Art.Nr.: P-mini-280 (Mounting on 2 raised beads - bead spacing 280 mm)
• Art.Nr.: P-mini-333 (Mounting on 2 raised beads - bead spacing 333 mm)

Accesories

• Art.Nr.: 2006 / Thin sheet screw/ 4,5x25 A2 SW 8 EPDM Ø 14mm
  Fastening without pre-drilling
• Art.Nr.: MMK-xxx-xxx / Module middle clamp
• Art.Nr.: MEK-xxx-xxx / Module end clamp
• Art.Nr.: AS-100-75 / Elevation
• Art.Nr.: KV-AS / Cross-connector

•

  2006

•

  MMK

•

  MEK

•

  AS-100-75

•

  KV-AS

Installation tools
SW 8

Mounting

1. Roof layout dependent on module dimensions
2. Align the first row using a chalk line.
3. Place the P-mini bracket in position and secure with a thin sheet screw.
4. Place the next rows using a wooden template. After 10 rows, check the alignment again with a guideline.

P-mini short tracks examples

Example 1

DICONAL^® P-mini short tracks.

Example 2

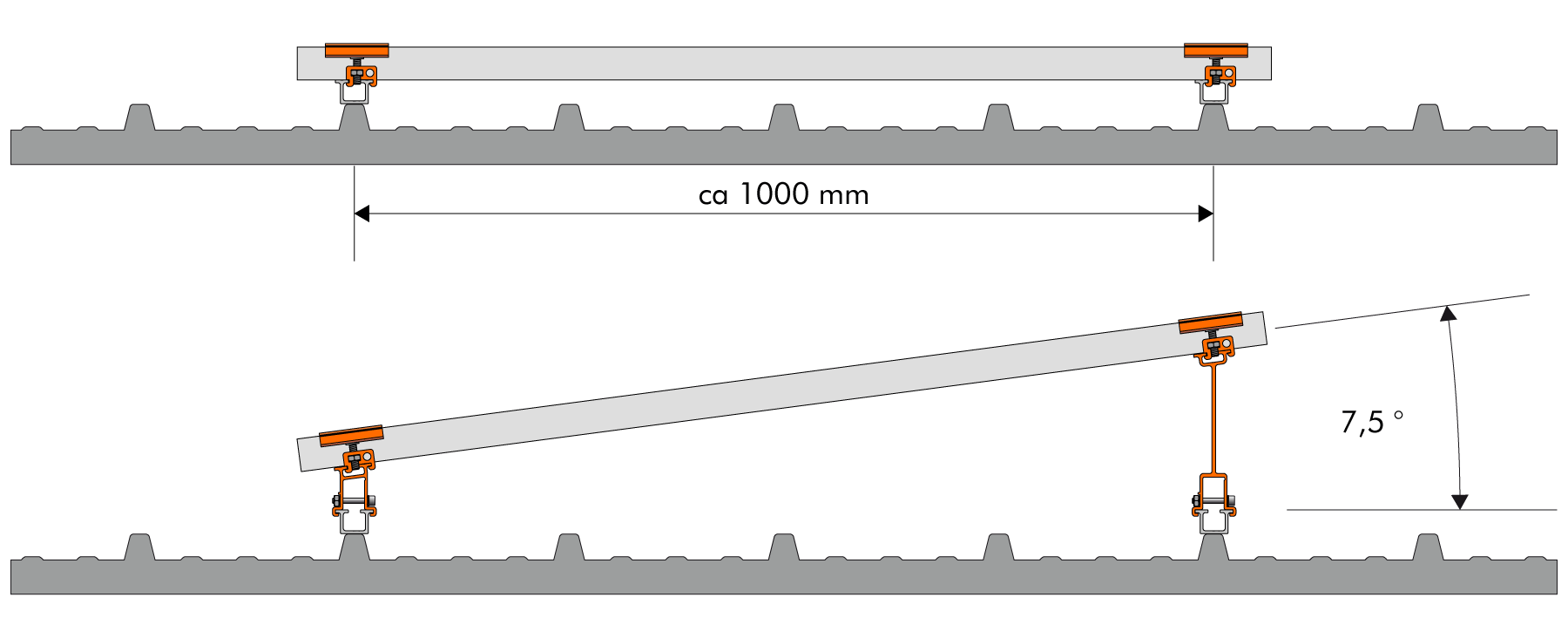

DICONAL^® P-mini can be used as a base for elevation AS-100-75.

Trapezoidal sheet alternative mounting systems

Sliding support GH

DICONAL^® Sliding support GH for non-walkable trapezoidal sheet metal roofs.

P-30 short tracks

P-30 short tracks for walkable trapezoidal sheet metal roofs. For flexible installation of the modules directly on the DICONAL^® short tracks.

Kalzip^® clamp

For Aluminium roofs the combination of DICONAL^® profile interface and Kalzip^® clamp is the perfect Pv mounting solution.

Hanger bolts

DICONAL^® Hanger bolts are used as fastenings in the roof substructure when the roof covering does not provide sufficient stability.
