DICONAL^® standing seam clamps for PV-Mounting

Standing seam clamps for metal sheet roofs
For PV-Mounting on Standing seam roofs DICONAL^® offers the perfect combination of seam clamp and the connection elements for PV mounting products.

Standing seam clamps advantages

• Matching clamps for each standing seam roof type
• Fast connector KV-40 offers easy and safe connection to the mounting profiles
• Optimal load transfer into roof
• The existing roofing will not be harmed
• Flexible positioning of clamps

Technical Data

Standing seam clamp:

• Art.Nr.: S-5 / Mini clamp (standing seam clamp) with KV-40-ev1 premounted Aluminiumclamp for double standing seam roofs of titanium zinc, stainless steel, aluminium etc.
• further seam clamps on request

all standing seam clamps will be premounted with clamp connector or sliding support. Material clamp connector and sliding support: ENAW 6063

Accessories

• Art.Nr.: P-40-6550-xxx / support profiles 40x40mm
• Art.Nr.: P-40-5500-xxx / support profiles 40x40mm
• Art.Nr.: P-80-6500-xxx / support profiles 80x40mm
• Art.Nr.: MMK-xxx-xxx / Module middle clamp
• Art.Nr.: MEK-xxx-xxx / Module end clamp

•

  P-40

•

  P-80

•

  MMK

•

  MEK

standing seam clamps references

Example 1

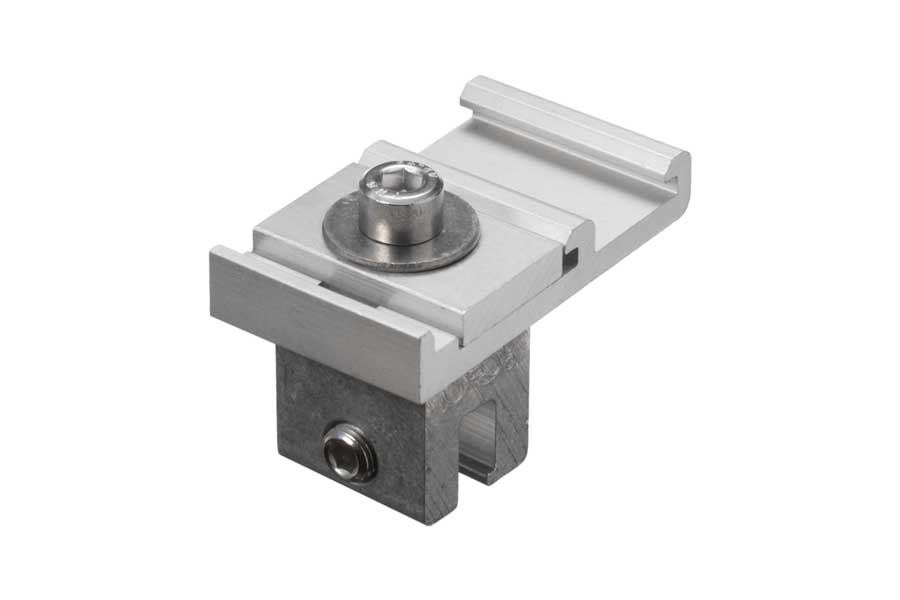

DICONAL^® S-5 / Mini clamp with KV-40-ev1

Trapezoidal sheet alternative mounting systems

Short profiles P-30

DICONAL^® Short profile sections P-30.

Sliding support GH

DICONAL^® Sliding support GH for not accessible trapezoidal sheet roofs.

FA-PV clamp

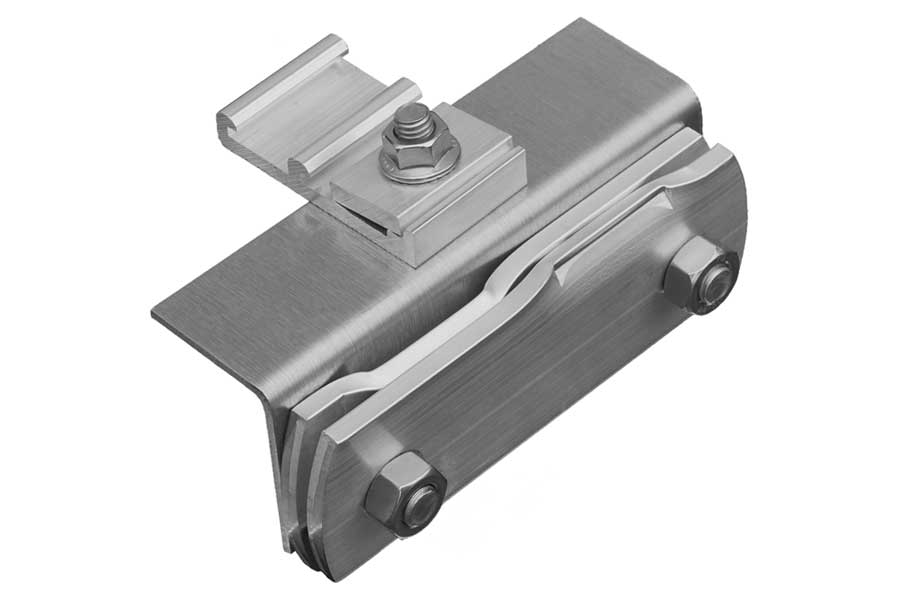

For Kalzip^® roofs we provide the original clamp from the Kalzip^® system in combination with our DICONAL^® profile section.
